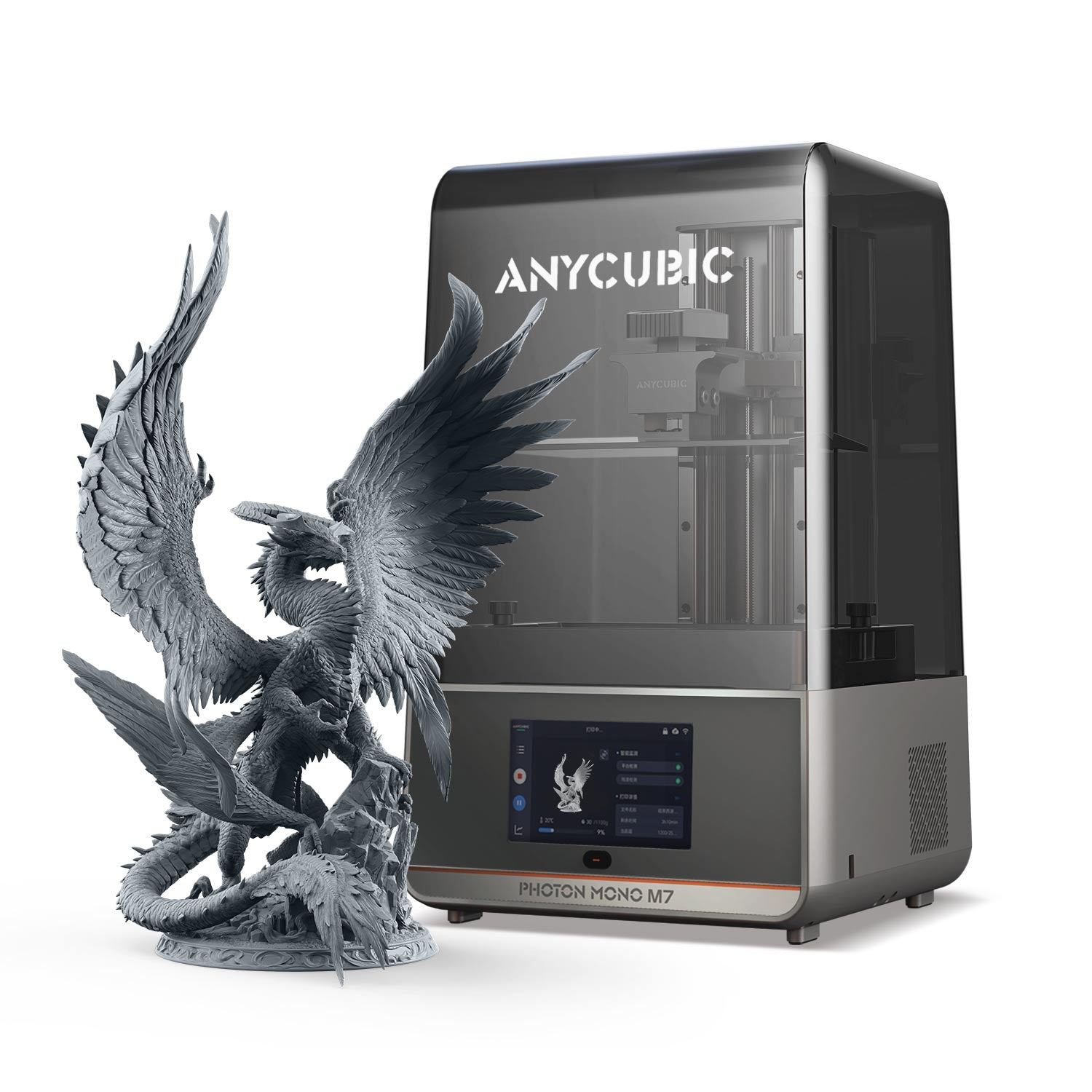

1 / 4Anycubic Photon Mono M7
The Anycubic Photon Mono M7 is a 14K mono LCD resin printer. It delivers high resolution for crisp detail.
Technology
Resin (MSLA)
Build volume
223 × 126 × 230 mm
Resolution
14K (13312 × 5120)
- Free shippingShips within 0–2 business days · 3–7 business day delivery
- Returns & refunds30 days free return label
- 2-year warranty
- Secure payment
Description
The Anycubic Photon Mono M7 provides 14K resolution, suitable for producing miniatures, jewellery, and intricate prototypes. A ParallelLink matrix light source ensures consistent curing over the entire build plate. The Z-axis is designed for a levelling-free operation, simplifying a common adjustment in resin printing. Job transfers are straightforward for all experience levels, thanks to a color touchscreen and options for USB or Wi-Fi connectivity. The 10.1-inch screen features a 16.8 × 24.8 micron pixel pitch. This forms the basis of the 14K resolution. Layer thickness can be adjusted from 0.01 mm to 0.15 mm, balancing desired detail with completion speed. The Photon Workshop slicer, developed by Anycubic, is the officially supported software for preparing models for printing. Advanced users can also utilize community slicers, such as Lychee, for more specialized supports and hollowing processes.
Highlights
- 14K mono LCD
- Fast curing
- Levelling-free design
- Large 223 × 126 mm plate
- Uniform matrix light source
Specifications
- Technology
- Resin (MSLA)
- Build volume
- 223 × 126 × 230 mm
- Resolution
- 14K (13312 × 5120)
- Light source
- ParallelLink matrix LED array
- Bed levelling
- Levelling-free, fixed Z-axis
- Resin type
- 405 nm standard resins
- Screen
- Colour touchscreen
- Connectivity
- USB, Wi-Fi
- Machine dimensions
- 312 × 315 × 520 mm
- Net weight
- 12 kg
- Max print speed
- Up to 150 mm/h (high-speed resin)
- Power consumption
- 135 W
- Pixel size
- 16.8 × 24.8 microns
- Layer thickness
- 0.01–0.15 mm
- Slicing software
- Anycubic Photon Workshop
