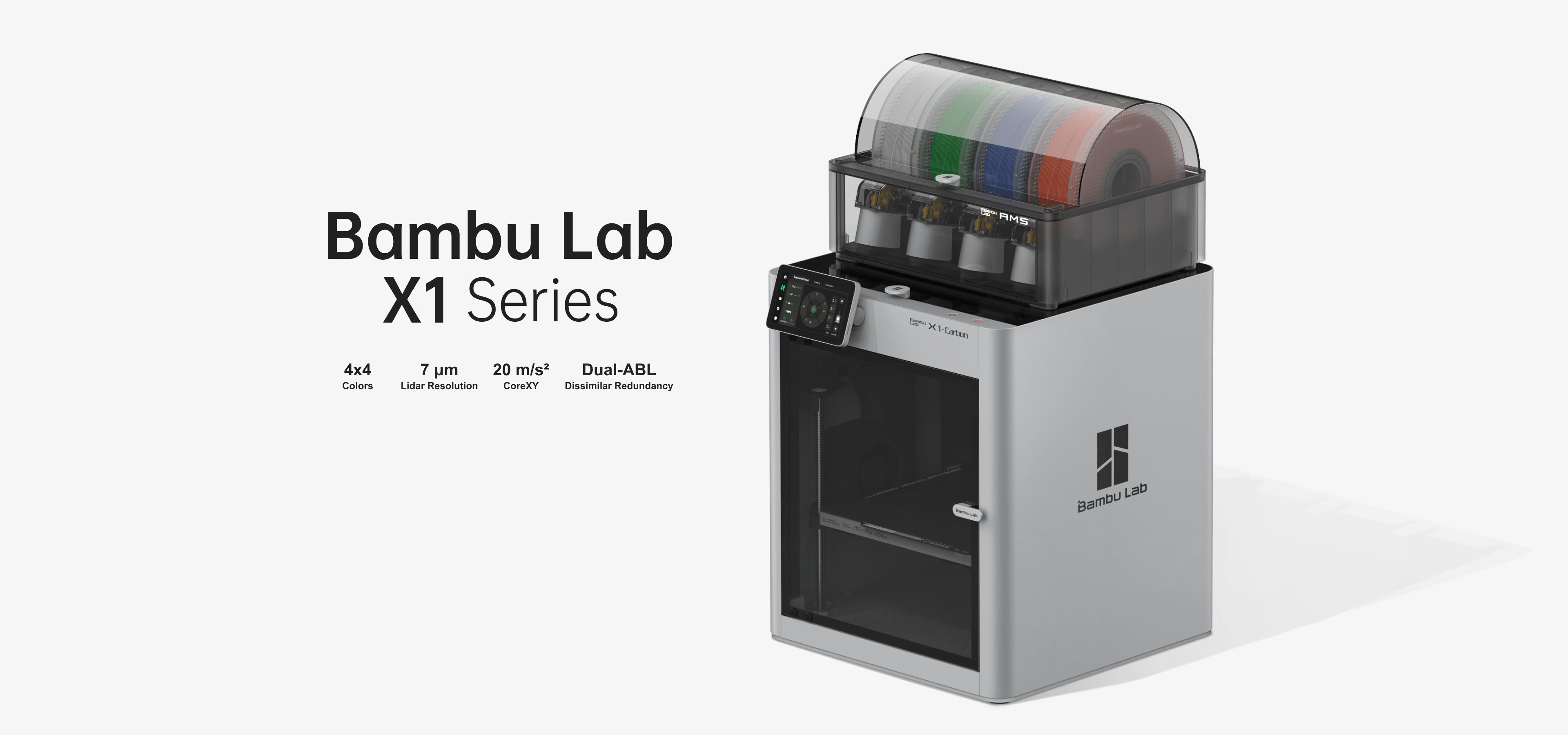

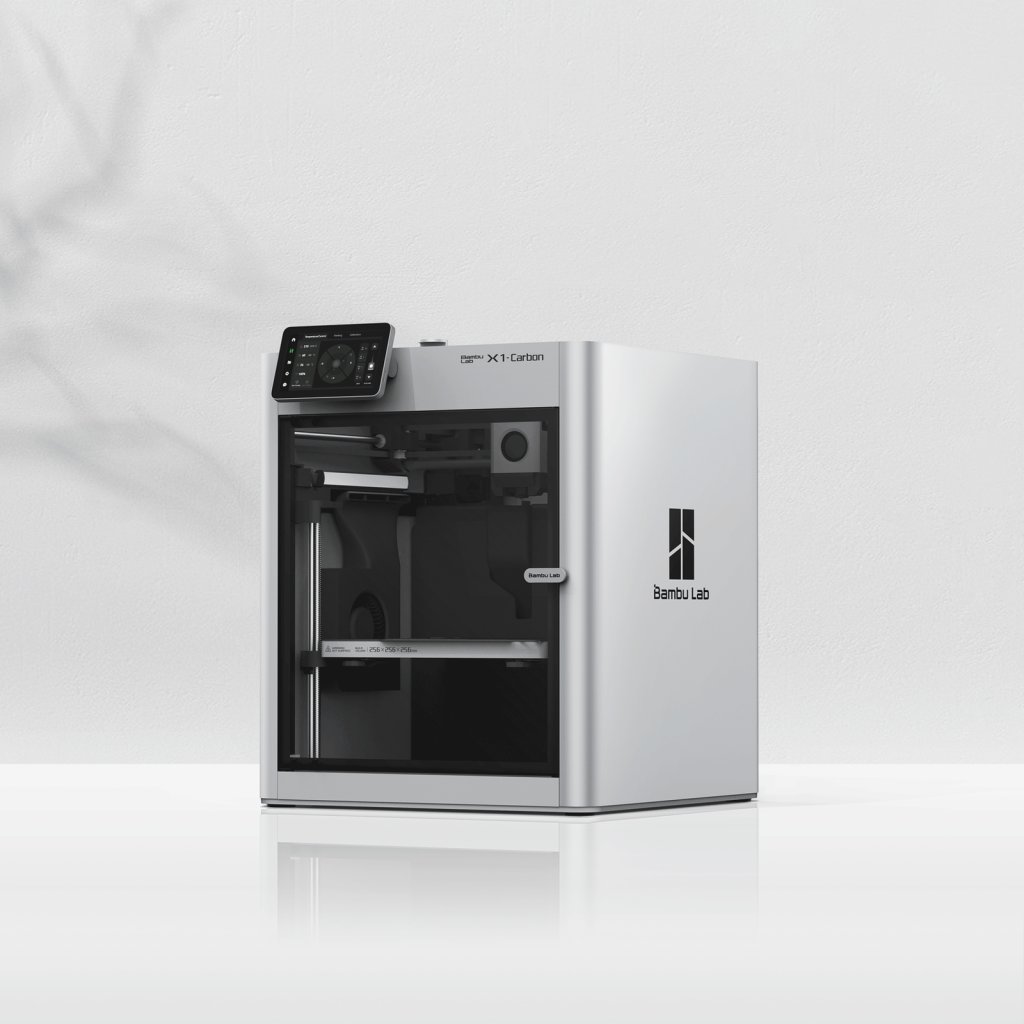

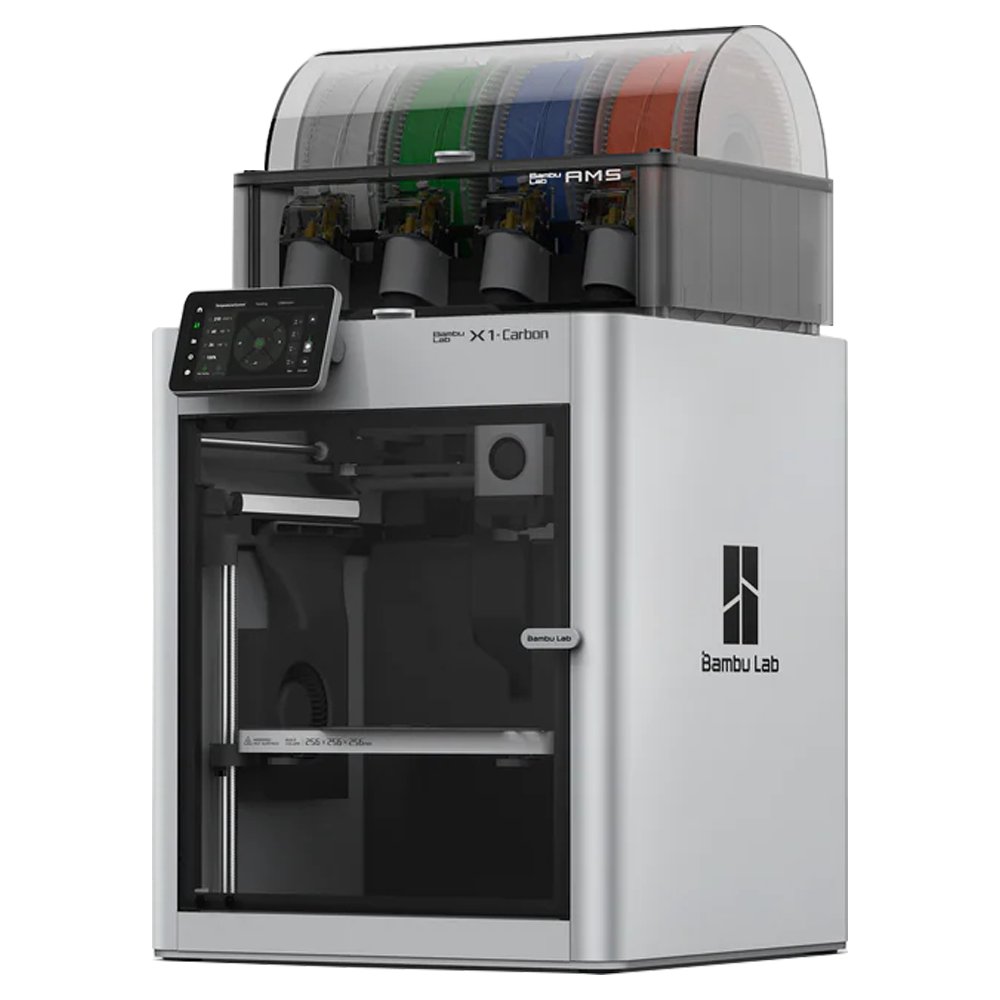

1 / 6Bambu Lab X1-Carbon
Enclosed CoreXY with lidar, a hotend for carbon-filled filament and AI monitoring.
Technology
FDM (enclosed CoreXY)
Build volume
256 × 256 × 256 mm
Max speed
500 mm/s
- Free shippingShips within 0–2 business days · 3–7 business day delivery
- Returns & refunds30 days free return label
- 2-year warranty
- Secure payment
Description
The X1-Carbon is a fully enclosed CoreXY with a micro-lidar for first-layer inspection, an AI camera that flags spaghetti and stringing during the print, and a hardened extrusion path for carbon- and glass-filled filaments. Strain-gauge levelling, input shaping and a 256 mm heat-retaining chamber are for engineering materials and unattended runs. The micro-lidar resolves detail down to 7 microns, enough to catch adhesion problems before a print fails, and the CoreXY toolhead can reach 20,000 mm/s² without giving up the accuracy the lidar is there to check. On a 220V circuit it draws up to 1000 W, so the enclosed chamber heats quickly enough that engineering filaments are ready to print rather than waiting on a slow warm-up.
Highlights
- Lidar first-layer scan
- AI detection of spaghetti
- Handles carbon-fibre filament
- 16-colour AMS support
- Hardened high-flow nozzle
Specifications
- Technology
- FDM (enclosed CoreXY)
- Build volume
- 256 × 256 × 256 mm
- Max speed
- 500 mm/s
- Nozzle
- 0.4 mm hardened steel
- Max nozzle temp
- 300 °C
- Max bed temp
- 100 °C
- Bed levelling
- Lidar + strain-gauge auto levelling
- Filament types
- PLA, PETG, ABS, ASA, PC, PA-CF, PET-CF
- Frame
- Fully enclosed
- Camera
- AI failure-detection camera
- Connectivity
- Wi-Fi, Bambu Cloud
- Lidar resolution
- 7 microns
- Max toolhead acceleration
- 20,000 mm/s² (20 m/s²)
- Power consumption
- Up to 1000 W (220V) / 350 W (110V)
