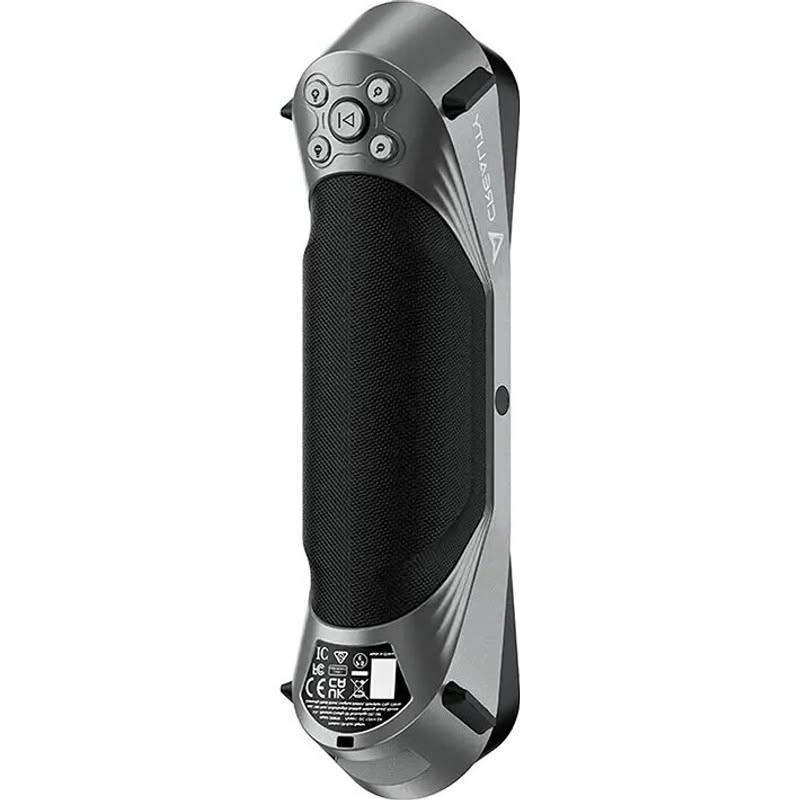

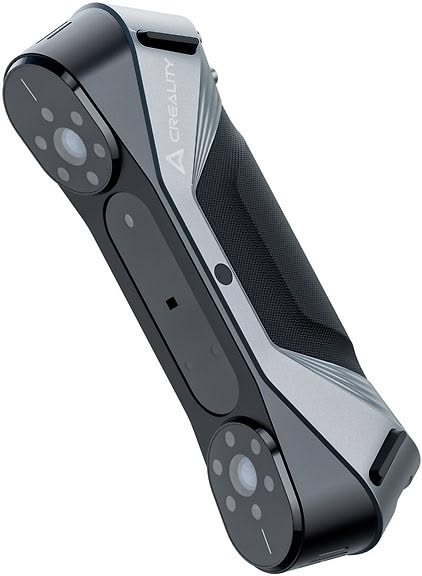

1 / 4Creality CR-Scan Raptor
This hybrid scanner combines blue-laser and NIR technologies, offering metrology-grade 0.02 mm laser accuracy.
Type
3D scanner
Sensor
WUXGA camera (1920 x 1200 px)
Scan speed
420.000 / 3.580.000 measurements/s
- Free shippingShips within 0–2 business days · 3–7 business day delivery
- Returns & refunds30 days free return label
- 2-year warranty
- Secure payment
Description

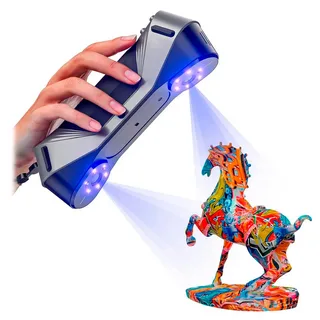

The CR-Scan Raptor operates as a hybrid scanner, integrating a seven-line blue laser with near-infrared structured light. This combination provides 0.02 mm accuracy in laser mode for metrology applications and versatile full-object scanning in NIR mode. Recognized as the first consumer multi-line blue-laser scanner, it rapidly processes models of nearly any format. Integrated stabilization and anti-shake protection ensure clear results, and black or metallic surfaces can be scanned directly without support sprays, functioning silently across various environments.
Highlights
- Hybrid blue-laser and NIR for metrology-grade accuracy
- Seven-line blue laser with 0.02 mm accuracy
- First consumer multi-line blue-laser scanner
- Rapid capture across various formats
- Stabilization and anti-shake protection
- Scans black or metallic surfaces without spray
Specifications
- Type
- 3D scanner
- Sensor
- WUXGA camera (1920 x 1200 px)
- Scan speed
- 420.000 / 3.580.000 measurements/s
- Accuracy
- Laser: 0.02, NIR: 0.1 mm
- Function
- Full-colour scanning
- Design
- With blue LED lights
- Laser
- 7 parallel blue laser lines
- Scan range
- min. 5 x 5 x 5, max. 270 x 170
- Width
- 215 mm
- Depth
- 50 mm
- Height
- 74 mm
- Working distance
- Laser: 0.15 - 0.4 / NIR: 0.17 - 1.0 m
- USB
- 1x USB 3.0 Typ-C
- Weight
- 0.372 kg
