Creality

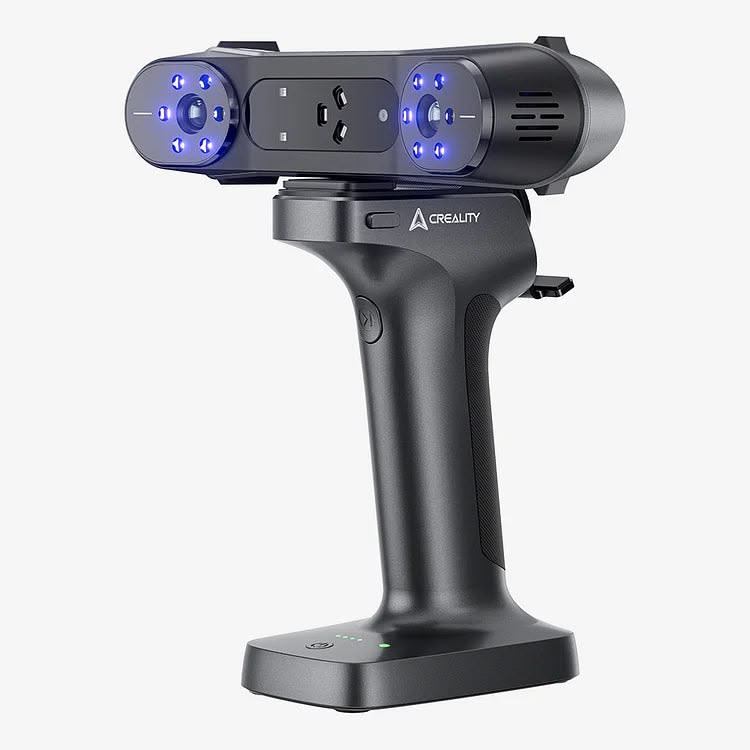

Creality CR-Scan RaptorX
MPN: 4008050054EAN: 6971636405283
€3,203
Instalments — 4× over 2 months: 4 × €800.75
Hybrid scanner with 34 cross-laser lines and a battery that is allowed in aircraft hold luggage.
In stock
1
- Free shippingShips within 0–2 business days · 3–7 business day delivery
- 2-year warranty
- Secure payment
Description
The CR-Scan RaptorX is the professional model in the Raptor line. It adds 34 cross-laser lines and 7 parallel laser lines on top of NIR structured light for large-format work. Volumetric accuracy is 0.02 mm plus 0.06 mm/m, and it captures more than a million points per second, so large assemblies are digitised quickly. A large battery that meets airline rules gives up to four hours of continuous scanning away from a socket, for field metrology.
Highlights
- 34 cross-laser lines and 7 parallel lines, plus NIR light
- Volumetric accuracy 0.02 mm + 0.06 mm/m
- Up to 1,020,000 points per second
- Up to 4 hours of continuous scanning
- Removable battery allowed in aircraft
- From 5 mm parts to 4 m objects
Specifications
- Type
- 3D scanner
- Sensor
- 2.3 MP camera
- Scan speed
- 420.000 / 1.020.000 / 3.580.000 measurements/s
- Accuracy
- Laser: 0.02, NIR: 0.05 mm
- Function
- Full-colour scanning
- Design
- With blue LED lights
- Laser
- 7 blue, 34 blue cross laser lines
- Battery
- 35.400 mWh (airline-safe)
- Scan range
- min. 5 x 5 x 5, max. 4000 x 4000 x 4000
- Width
- 215 mm
- Depth
- 50 mm
- Height
- 74 mm
- Working distance
- Laser: 0.15 - 0.4 / 0.2 - 0.6, NIR: 0.17 - 1 m
- USB
- 1x USB 3.0 Typ-C
- Wi-Fi
- Wi-Fi 6
- Battery life
- 4 h
- Weight
- 0.405 kg
