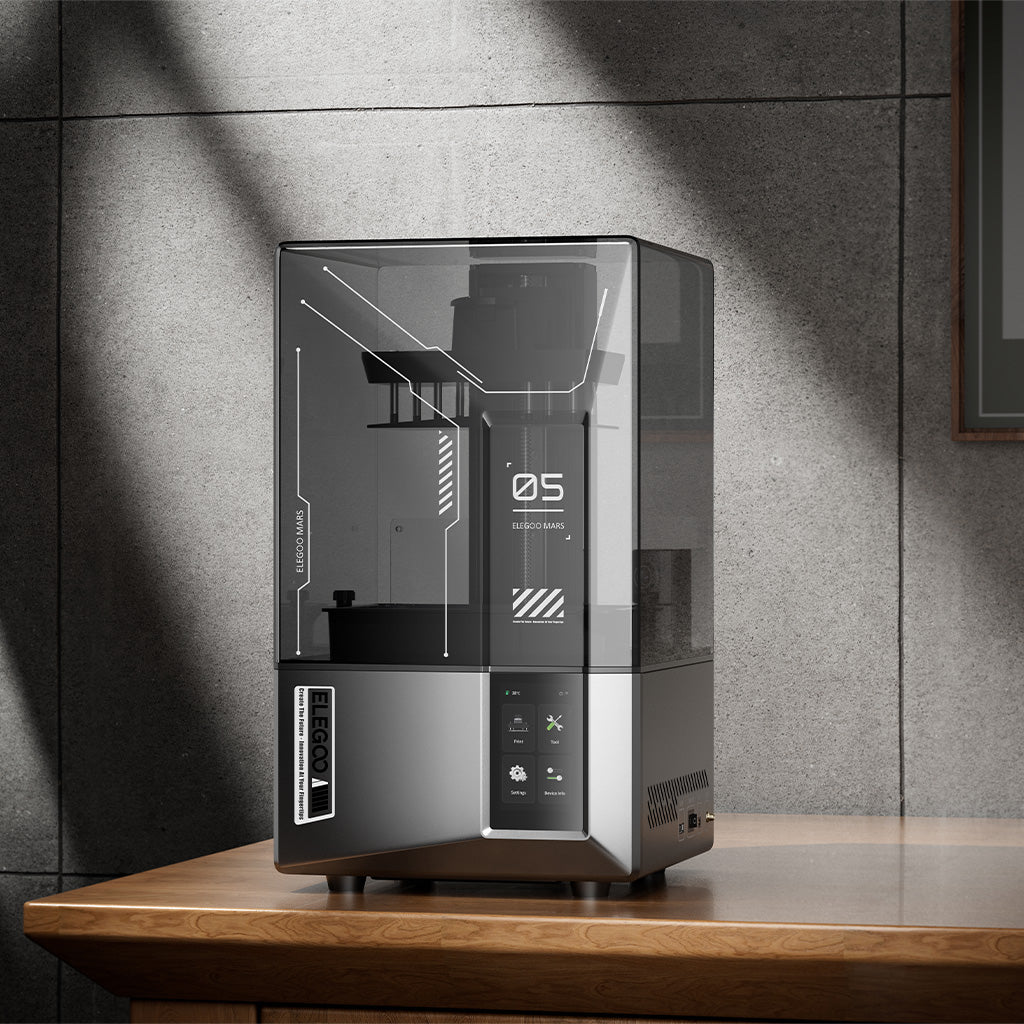

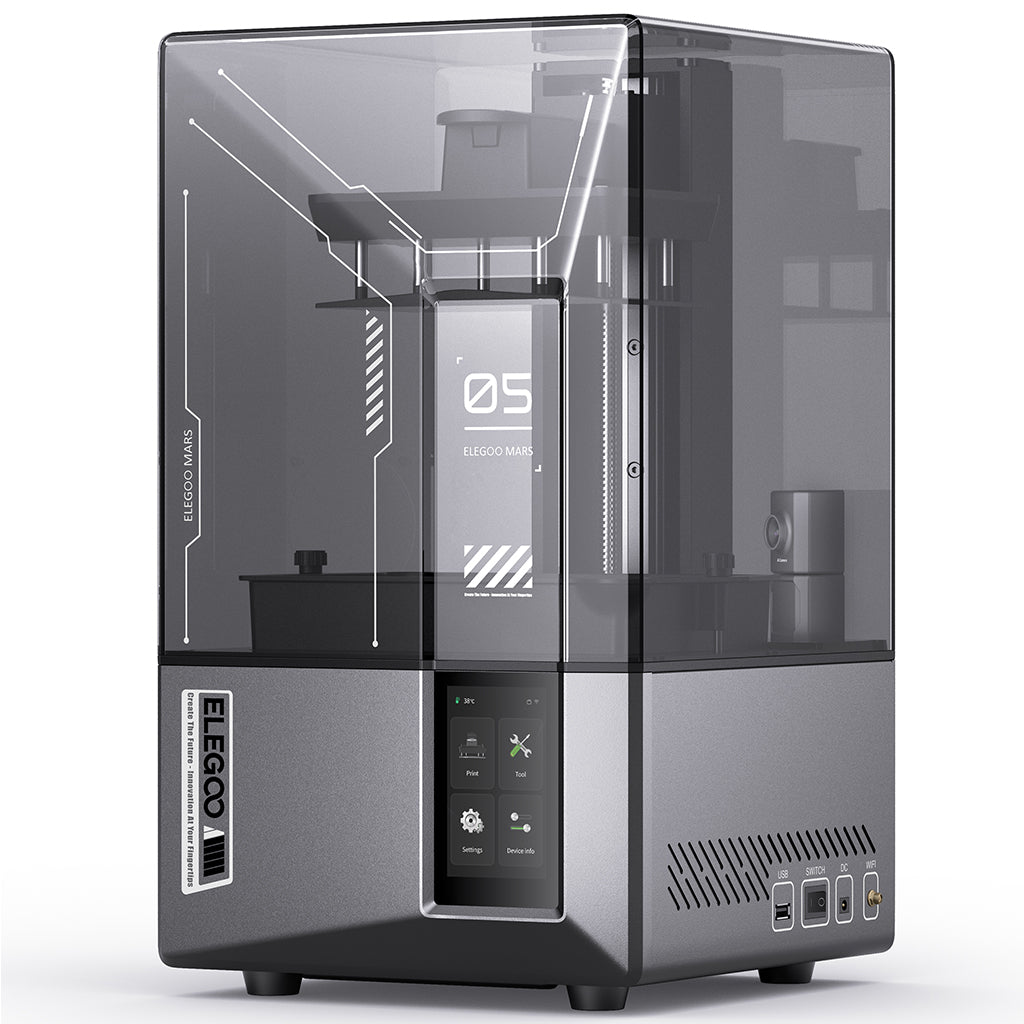

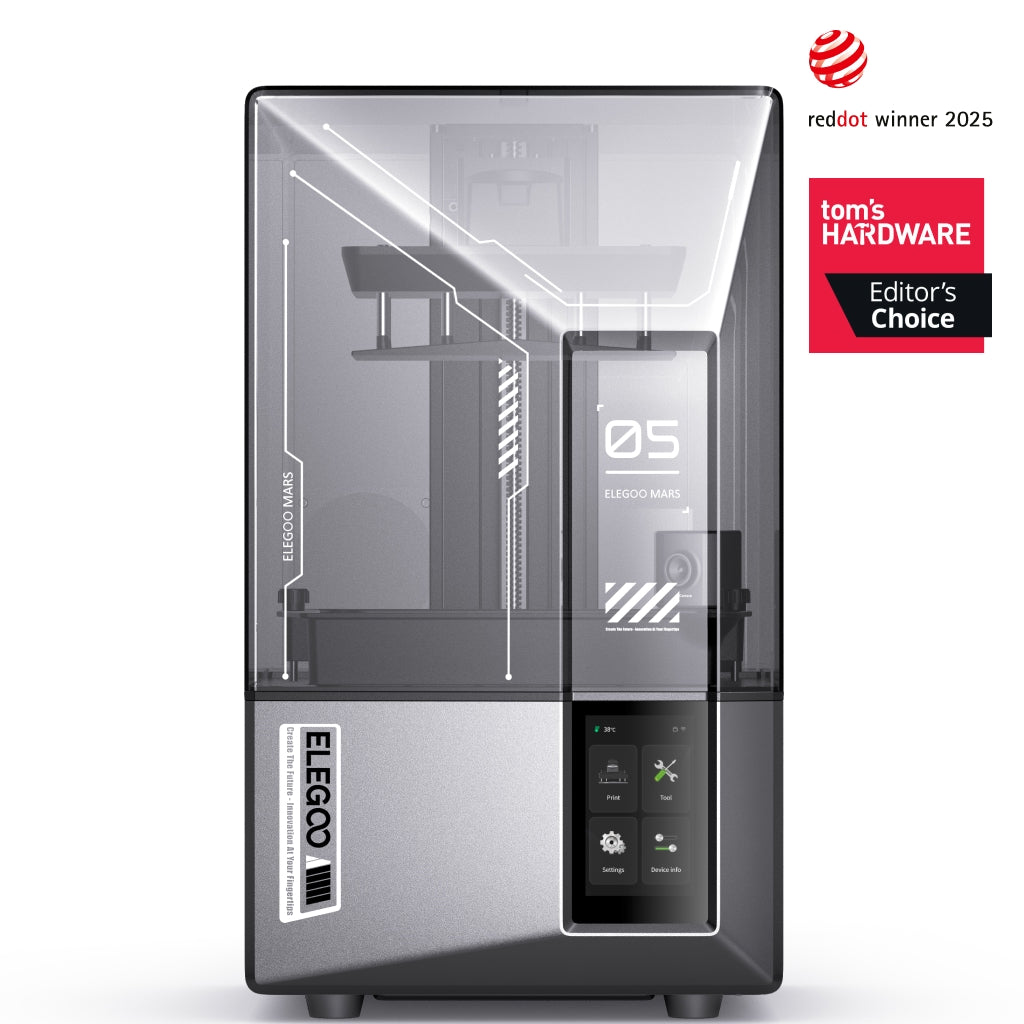

1 / 5Elegoo Mars 5 Ultra
MPN: MARS-5-ULTRAEAN: 6975102520011
€246.02€273.36-10% Black Friday
VAT included where applicableGet 7% off every order7% OFF
Compact 9K resin printer with an AI camera and fast-release film.
Technology
Resin (MSLA)
Build volume
153 × 77 × 165 mm
Resolution
9K (8520 × 4320)
1
- Free shippingShips within 0–2 business days · 3–7 business day delivery
- Returns & refunds30 days free return label
- 2-year warranty
- Secure payment
Description

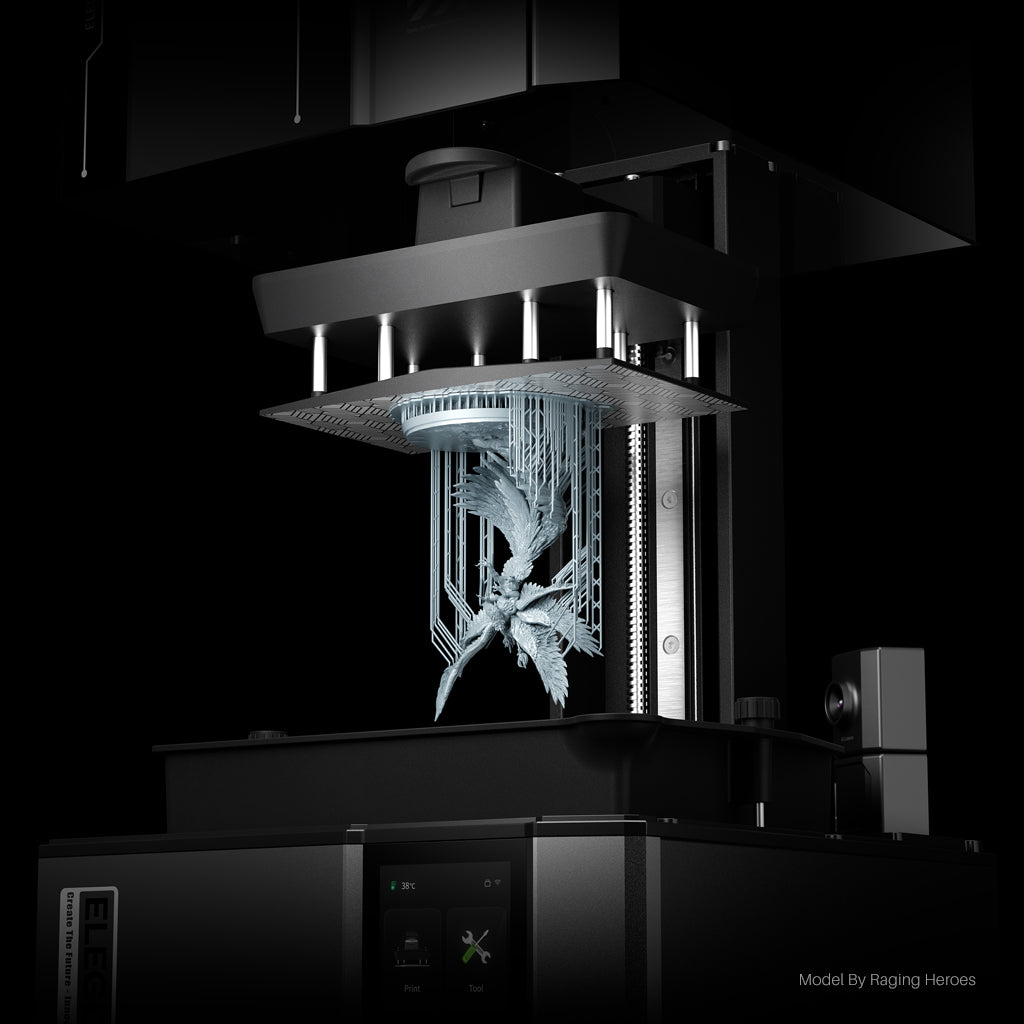

The Mars 5 Ultra is aimed at detailed miniatures: 9K resolution, an AI camera for failure detection and a self-heating resin vat that keeps viscosity steady through the year, whatever the room temperature. A COB light source spreads curing energy evenly, and the textured fast-release film lowers peel force so layers separate without pulling detail off the plate. The 9K screen has an 18-micron pixel pitch, fine enough for crisp edges on small miniature details that would blur on a lower-resolution LCD. It accepts ChituBox or Lychee Slicer, so an existing workflow does not have to be relearned.
Highlights
- 9K mono LCD
- AI camera monitoring
- Self-heating vat
- Fast-release film
- Even COB light source
Specifications
- Technology
- Resin (MSLA)
- Build volume
- 153 × 77 × 165 mm
- Resolution
- 9K (8520 × 4320)
- Light source
- COB LED array
- Resin vat
- Self-heating, fast-release film
- Camera
- AI failure-detection camera
- Resin type
- 405 nm standard resins
- Connectivity
- USB, Wi-Fi
- Machine dimensions
- 260 × 268 × 451.5 mm
- Net weight
- 8.8 kg
- Max print speed
- Up to 150 mm/h
- XY resolution
- 18 microns
- Power input
- 100–240V AC, 24V 3A output
- Slicing software
- ChituBox, Lychee Slicer
