Elegoo

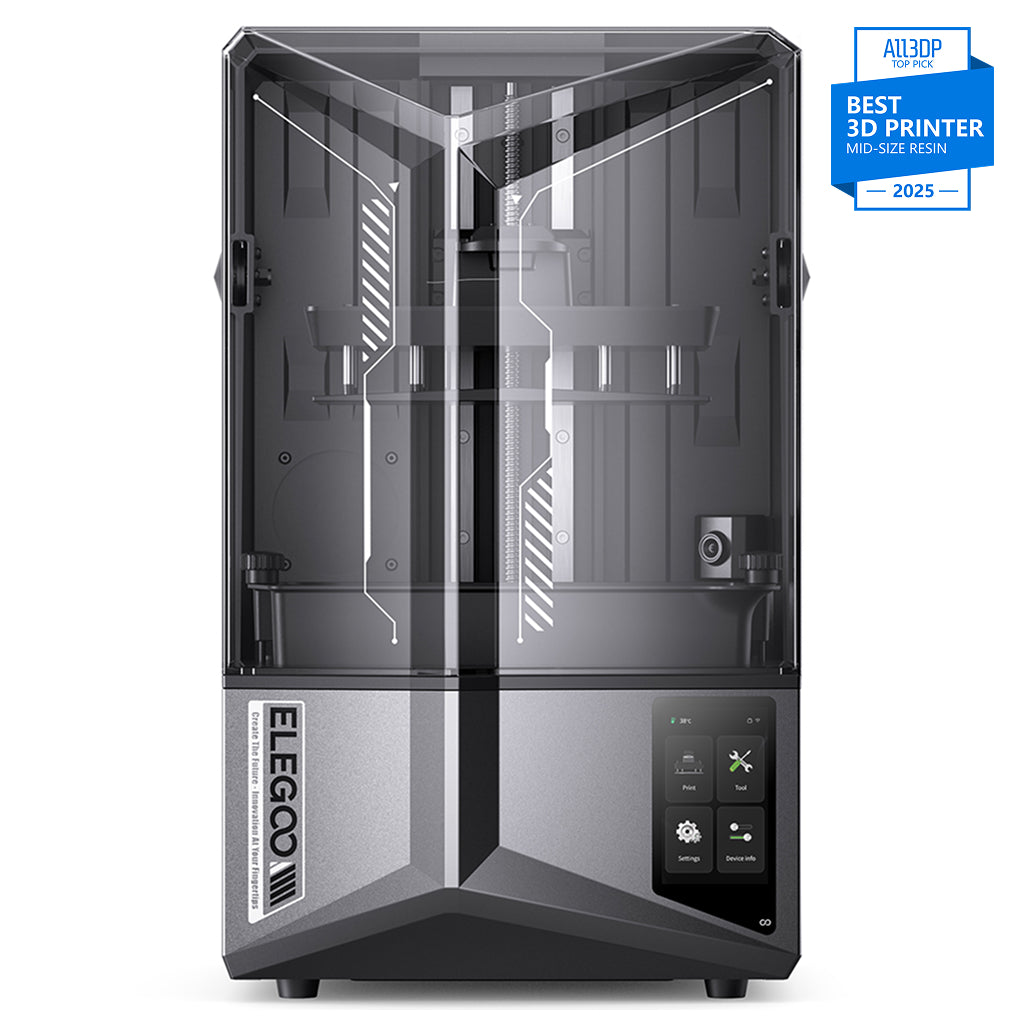

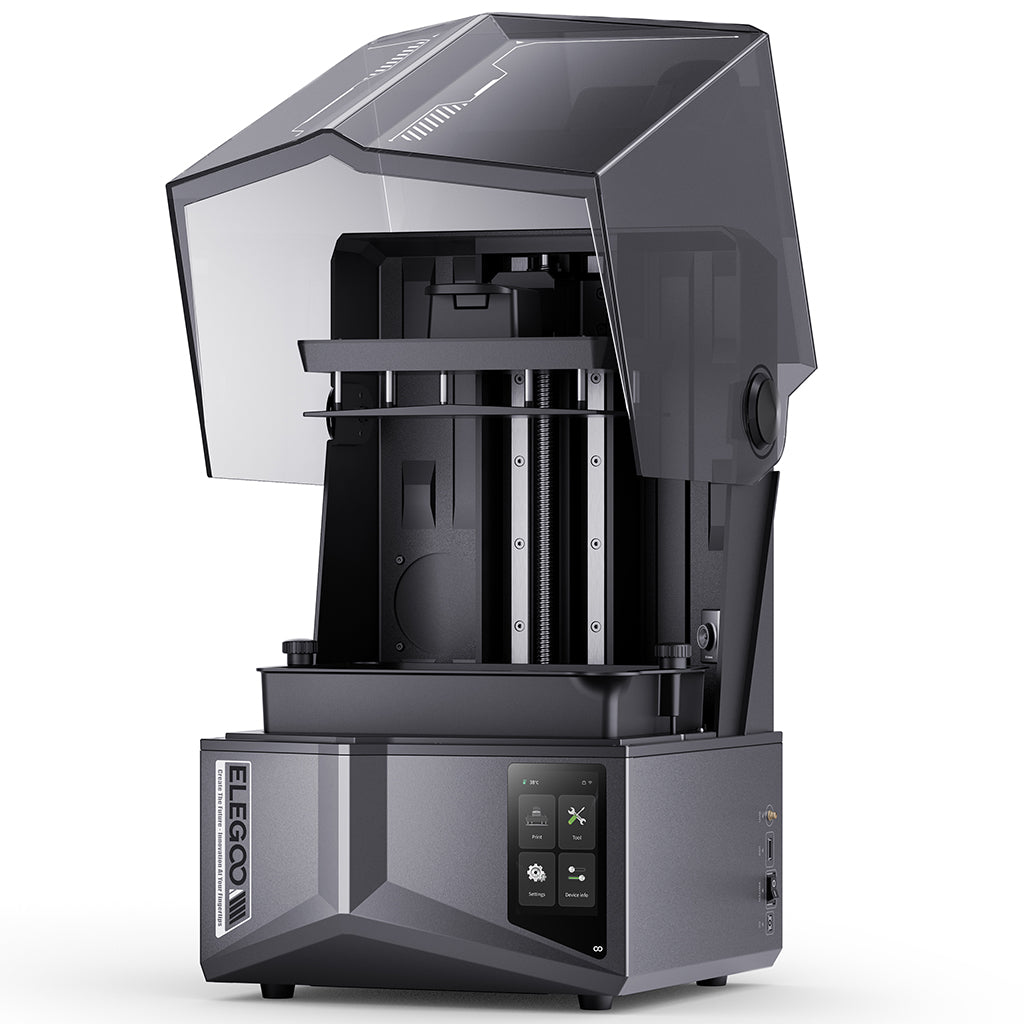

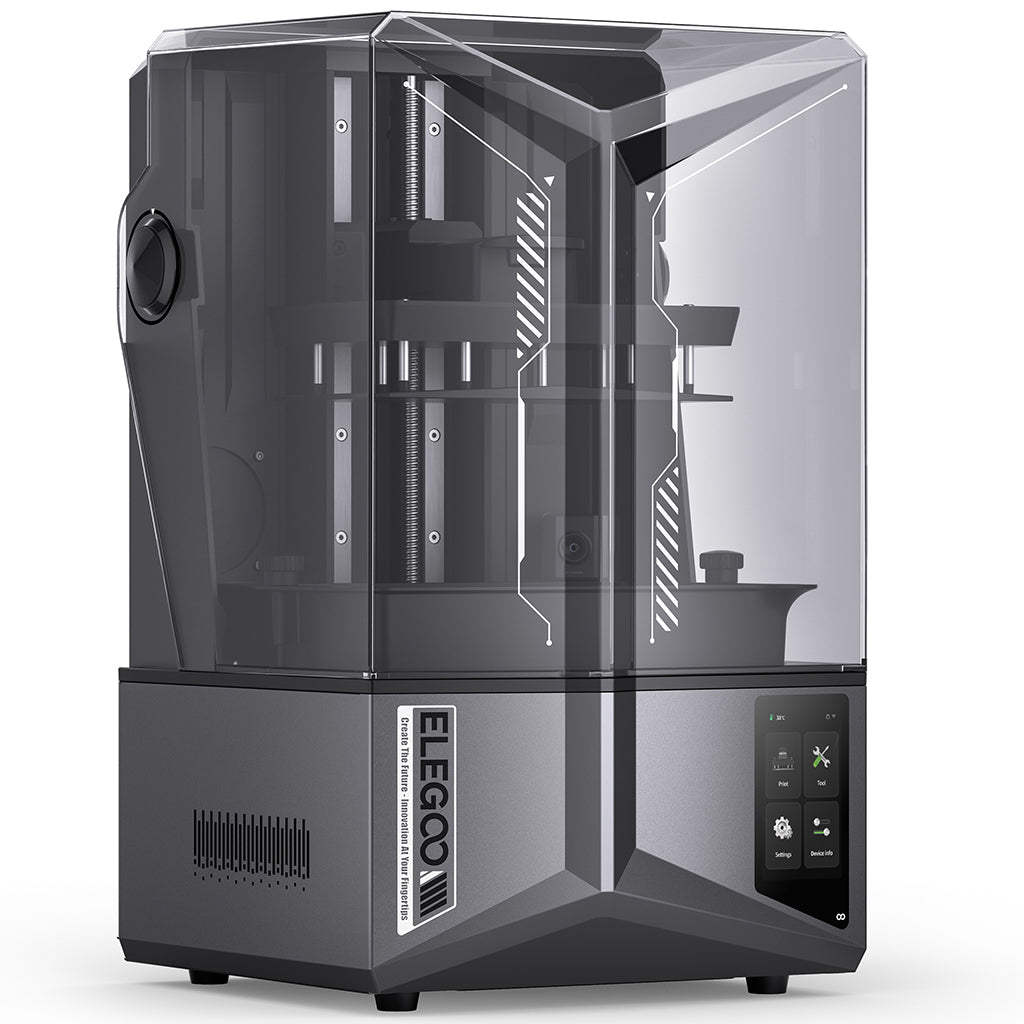

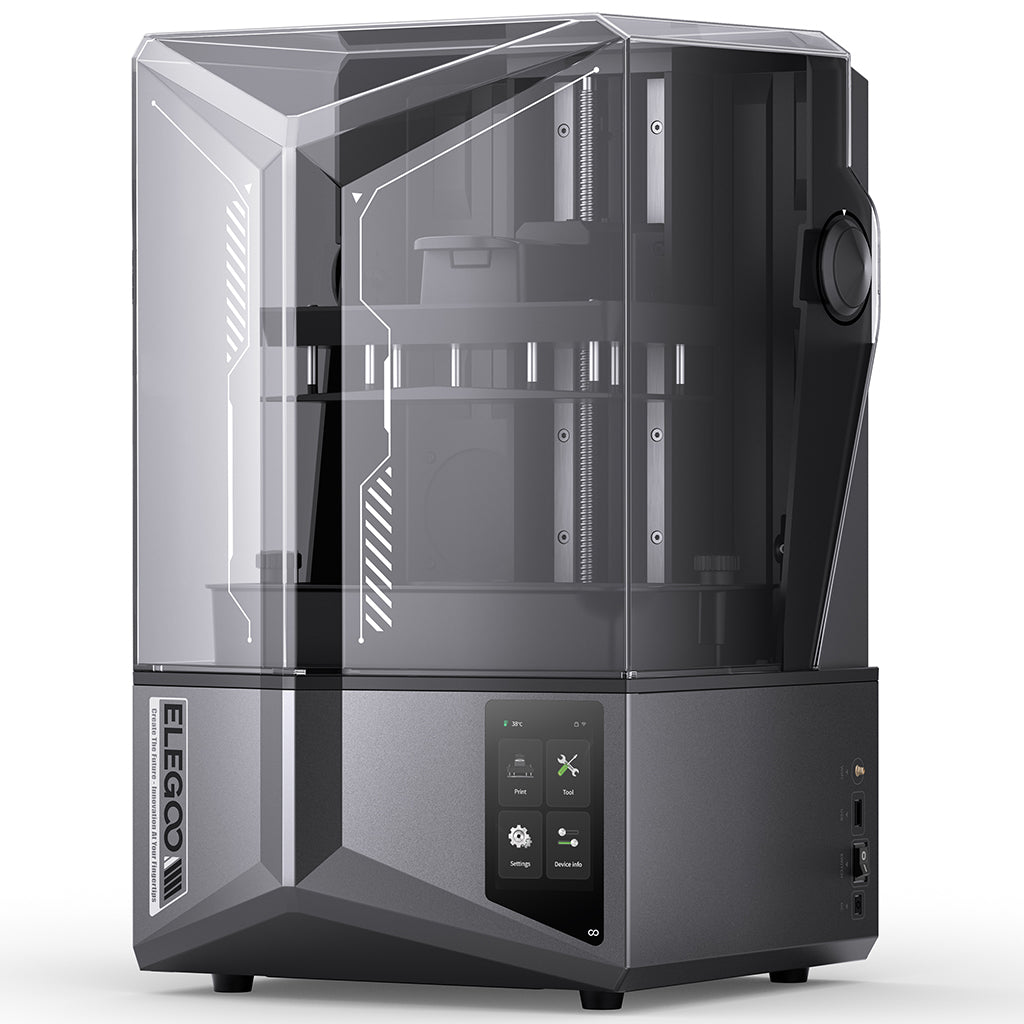

Elegoo Saturn 4 Ultra
This large-format 12K resin printer incorporates a tilt-release system, enabling quicker print cycles.
- Free shippingShips within 0–2 business days · 3–7 business day delivery
- 2-year warranty
- Secure payment
Description
The Elegoo Saturn 4 Ultra elevates resin printing capabilities, featuring a generous 12K screen and an innovative tilt-release mechanism. This mechanism significantly reduces peel times by raising the build plate at an angle instead of vertically. An integrated COB light source ensures uniform resin curing across the entire build platform. For extended print runs, an AI camera monitors each layer, aiding in the early detection of potential print failures. This makes it suitable for producing large quantities of miniatures or individual, larger models. Its 12K monochrome LCD panel delivers a precise 19 × 24 micron pixel pitch across the full print area, maintaining consistent edge sharpness for both single large models and multiple small ones. The printer uses ChituBox for slicing, a familiar software for many resin printer users.
Highlights
- 12K monochrome LCD
- Advanced tilt-release system
- Generous 218 × 123 mm build plate
- Integrated AI camera
- Uniform COB light source
Specifications
- Technology
- Resin (MSLA)
- Build volume
- 218 × 123 × 220 mm
- Resolution
- 12K (11520 × 5120)
- Light source
- COB LED array
- Release mechanism
- Tilt-release plate
- Camera
- AI failure-detection camera
- Resin type
- 405 nm standard resins
- Connectivity
- USB, Wi-Fi
- Machine dimensions
- 327.4 × 329.2 × 548 mm
- Net weight
- 14.5 kg
- Max print speed
- Up to 150 mm/h
- XY resolution
- 19 × 24 microns
- Power input
- 100–240V AC, 24V 6A output
- Slicing software
- ChituBox
