1 / 3QIDI Tech Max4 Combo
Max4 Combo package, 46.5 kg net, same 390 mm printer.
Technology
FDM, enclosed CoreXY
Build volume
390 × 390 × 340 mm
Max speed
800 mm/s
- Free shippingShips within 0–2 business days · 3–7 business day delivery
- Returns & refunds30 days free return label
- 2-year warranty
- Secure payment
Description

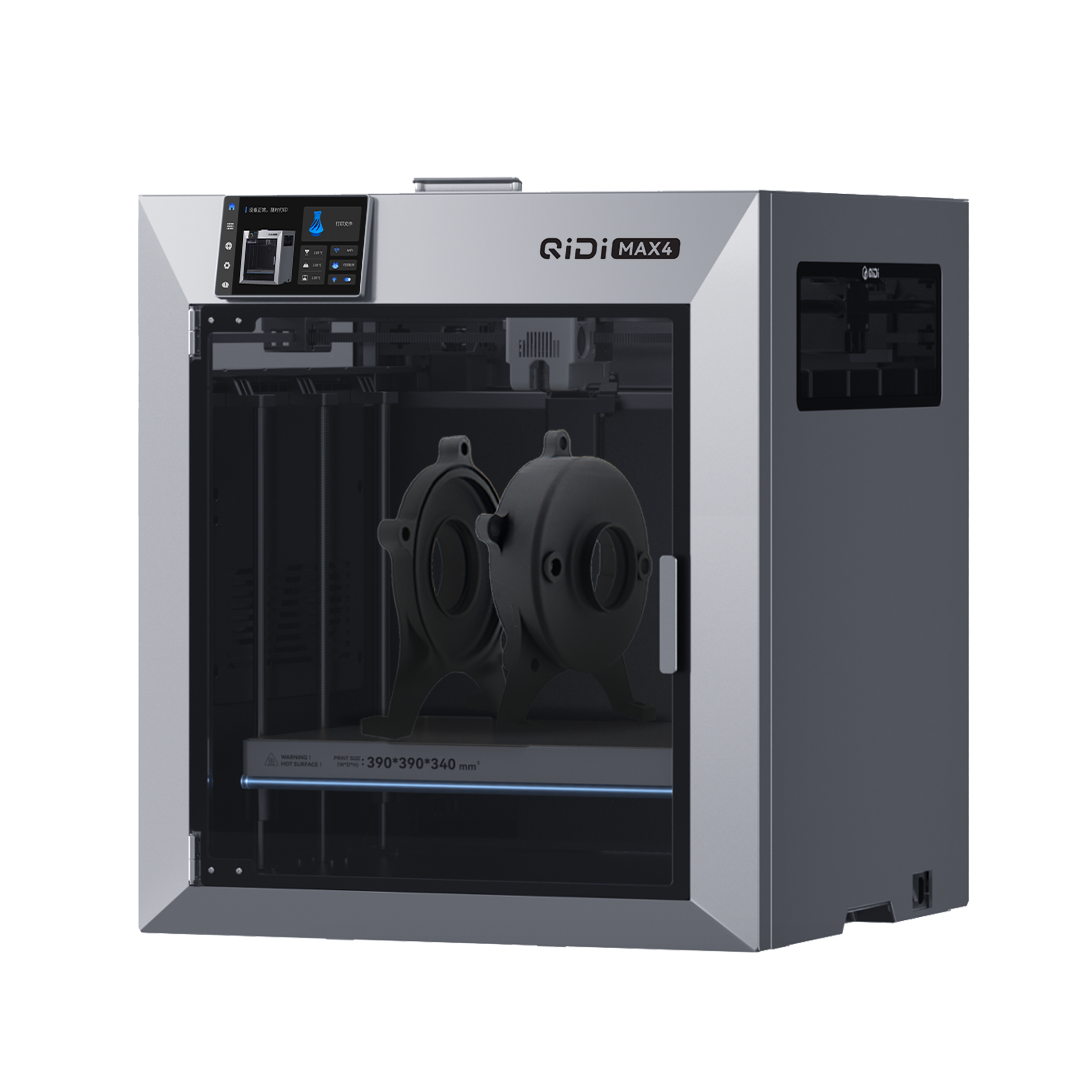

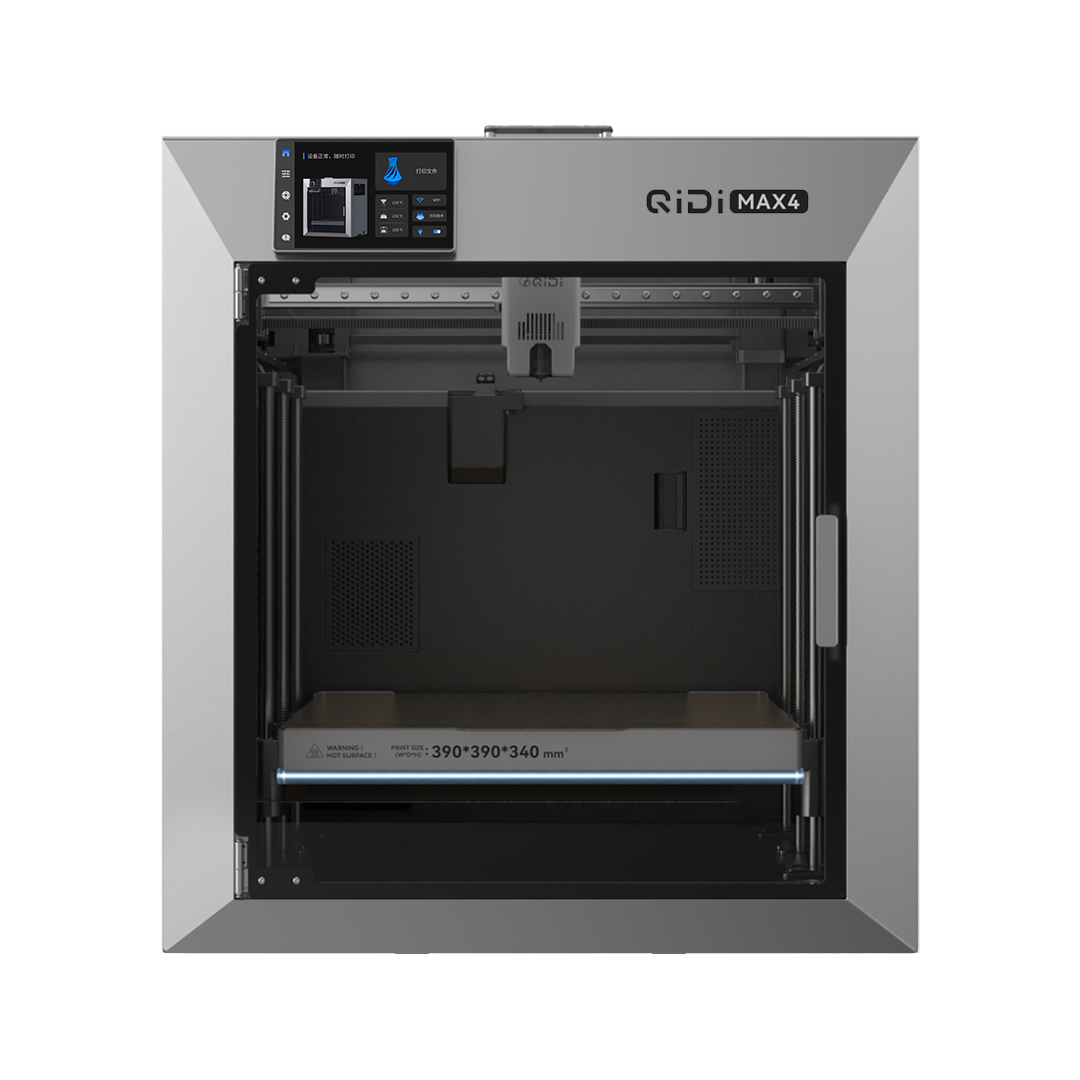

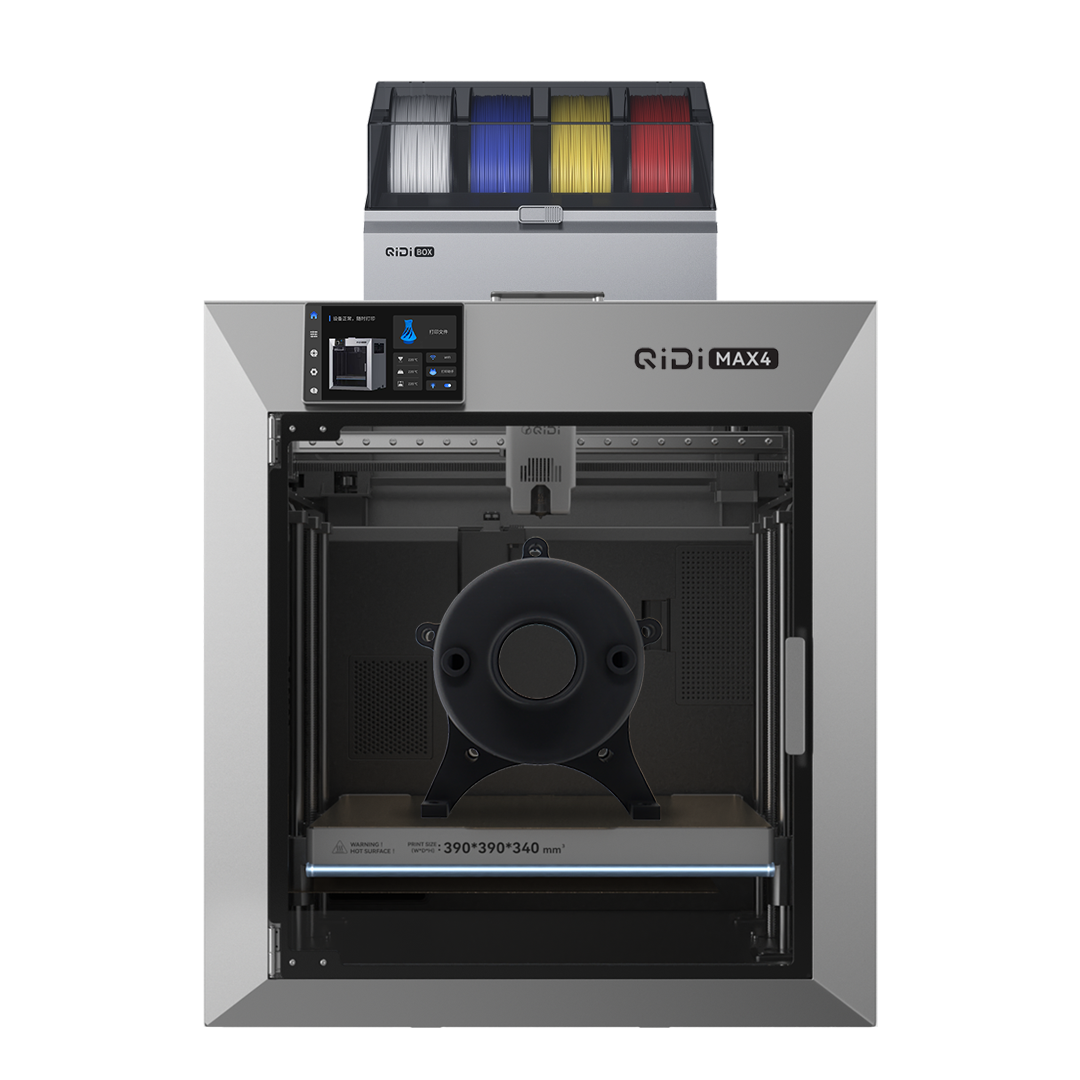

The QIDI Max4 is a large enclosed CoreXY printer. QIDI lists a 390 × 390 × 340 mm build volume, a toolhead speed of 800 mm/s and acceleration up to 30,000 mm/s². The bimetal nozzle reaches 370 °C and the bed 120 °C. Third-generation chamber heating holds the chamber at up to 65 °C. The motion system uses closed-loop stepper motors, a linear rail on X and 12 mm steel shafts on Y. A 3-in-1 filter, load-cell levelling, an AI camera and run-out detection are included. Net weight is 40 kg and the machine measures 558 × 578 × 612 mm. The QIDI Box for multi-colour printing is separate. QIDI lists a Max4 Combo package at 46.5 kg net, against 40 kg for the printer alone. The printer specification is otherwise the same. Multi-colour printing uses the QIDI Box, which is documented as compatible rather than confirmed inside this carton.
Highlights
- 390 × 390 × 340 mm
- Up to 800 mm/s
- Nozzle to 370 °C
- 65 °C chamber
- Closed-loop motors
Specifications
- Technology
- FDM, enclosed CoreXY
- Build volume
- 390 × 390 × 340 mm
- Max speed
- 800 mm/s
- Acceleration
- Up to 30,000 mm/s²
- Max nozzle temp
- 370 °C
- Max bed temp
- 120 °C
- Chamber
- Active heating to 65 °C
- Nozzle
- 0.4 mm bimetal, optional 0.2 / 0.6 / 0.8 mm
- Motion
- FOC closed-loop steppers, linear rail X, 12 mm shafts Y
- Bed levelling
- Automatic, load cell in the hotend
- Air filter
- G3 pre-filter, H12 HEPA, activated carbon
- Camera
- AI camera detection
- Machine dimensions
- 558 × 578 × 612 mm
- Net weight
- 40 kg
