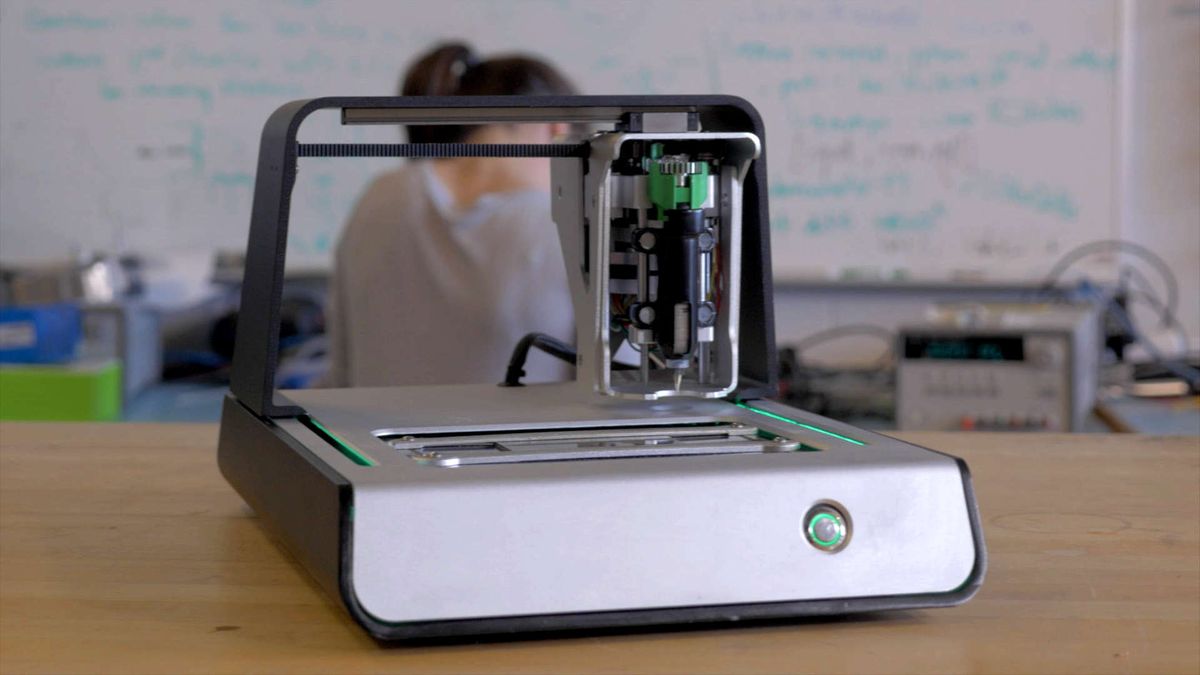

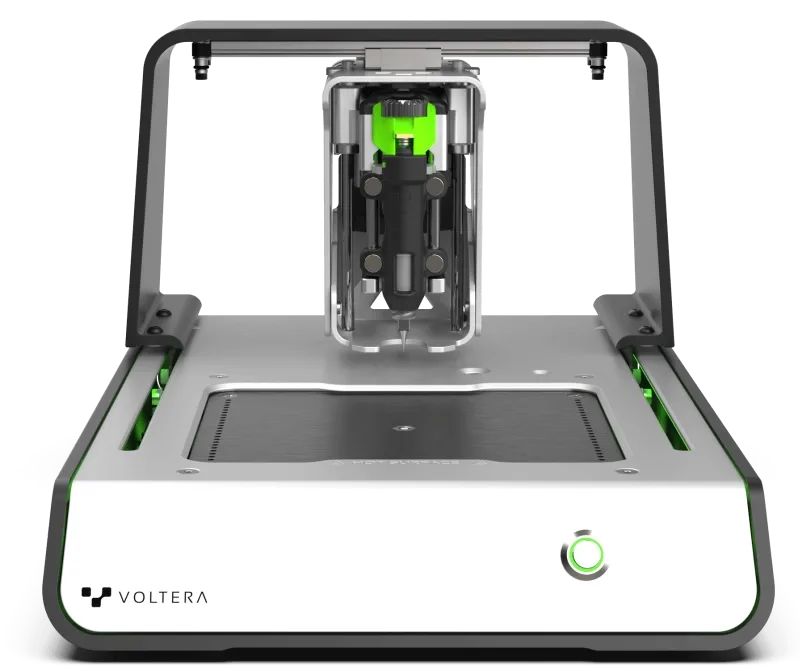

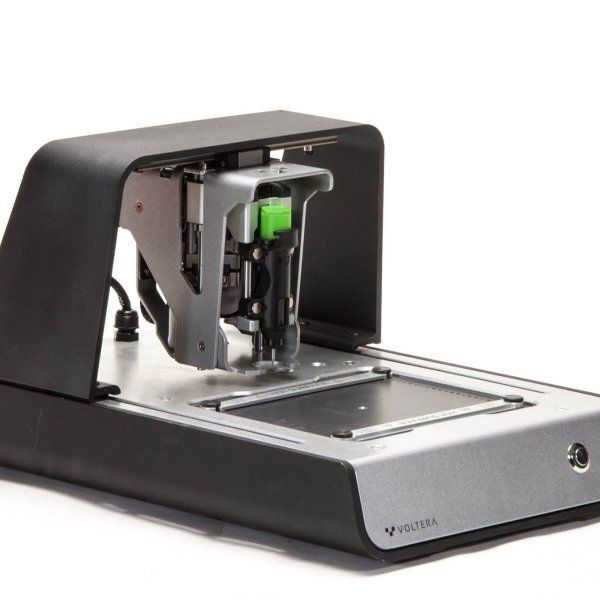

1 / 4Voltera V1 PCB Printer
The Voltera V1 is a desktop PCB prototyping printer. It can draw conductive traces and reflow solder paste on-site.
Type
3D-Platinendrucker
Design
Ready to use
Technology
Leiterbahnendruck
- Free shippingShips within 0–2 business days · 3–7 business day delivery
- Returns & refunds30 days free return label
- 2-year warranty
- Secure payment
Description

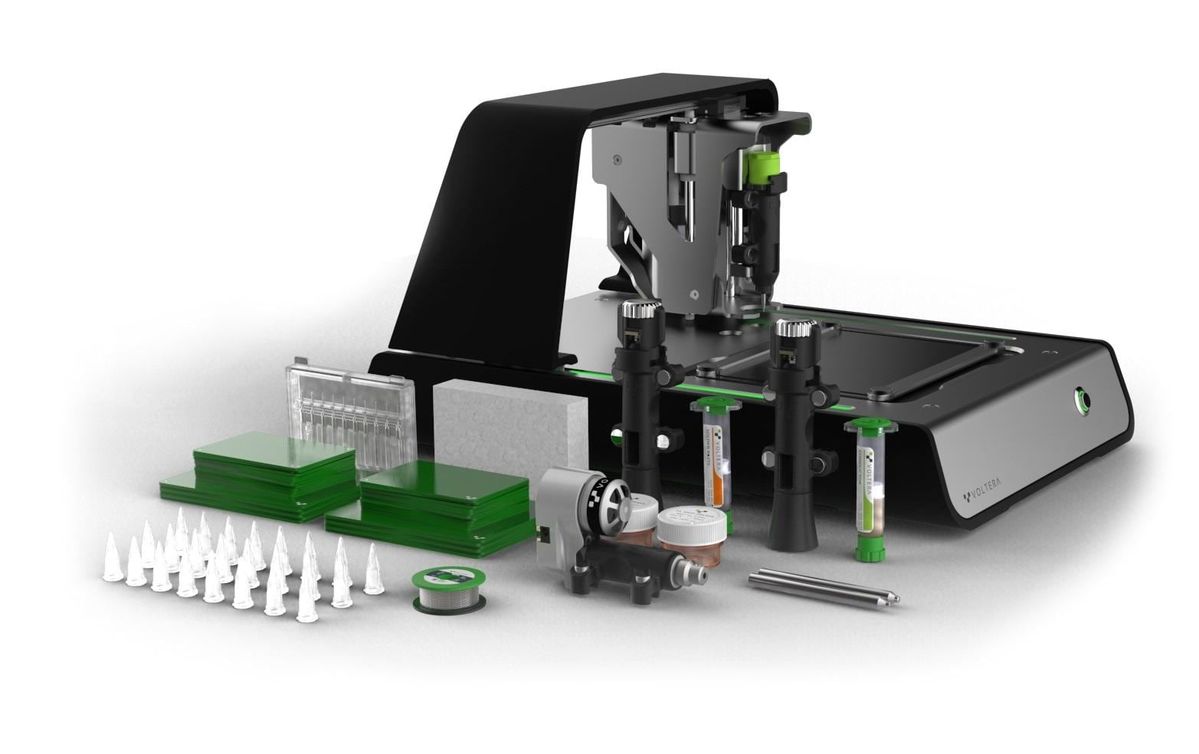

The Voltera V1 functions as a desktop system for PCB prototyping, distinct from a plastic 3D printer. Conductive silver ink is dispensed to print circuit traces directly onto a blank substrate. The unit then switches to a solder-paste head and a drill, enabling component placement and board finishing without external fab house involvement. Interchangeable nozzles of 0.10, 0.15, and 0.225 mm are provided, allowing a trade-off between trace precision and print speed. A heated bed, reaching 240 degrees, reflows solder paste after components are positioned. Its 128 x 116 mm working area and 7 kg chassis are suitable for engineers and hobbyists requiring same-day PCB iterations instead of large-scale manufacturing.
Highlights
- Creation of conductive silver-ink traces directly on blank PCB substrate
- Interchangeable 0.10/0.15/0.225 mm nozzles balance precision and speed
- 240 degree heated bed for solder paste reflow
- Integrated drilling for vias and component holes
- 128 x 116 mm working area in a 7 kg chassis
- Design supports rapid PCB iterations, bypassing external manufacturing
Specifications
- Type
- 3D-Platinendrucker
- Design
- Ready to use
- Technology
- Leiterbahnendruck
- Object size (max.)
- 128 x 116 mm
- Extruder
- 1x
- Filament
- Leitpaste
- Nozzle
- 0.10 / 0.15 / 0.225 mm
- Heated bed
- 240 °C
- USB
- 1x
- Width
- 257 mm
- Depth
- 390 mm
- Height
- 207 mm
- Weight
- 7.0 kg
