Scan Dimension

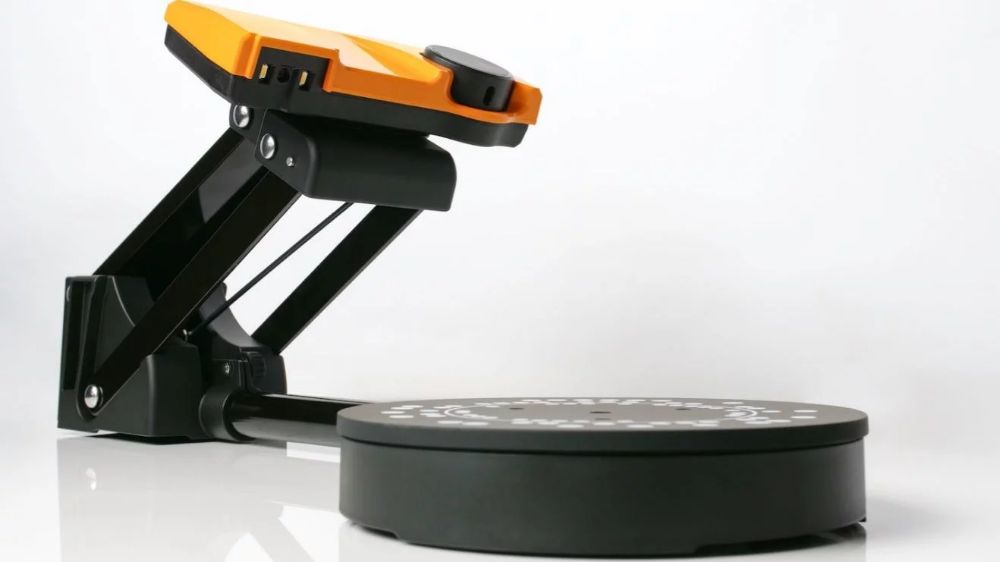

Scan Dimension SOL
MPN: CA73AEAN: 5714127002001
€444.36
Automated desktop scanner with 0.1 mm accuracy and a motorised turntable.
In stock
1
- Free shippingShips within 0–2 business days · 3–7 business day delivery
- 2-year warranty
- Secure payment
Description

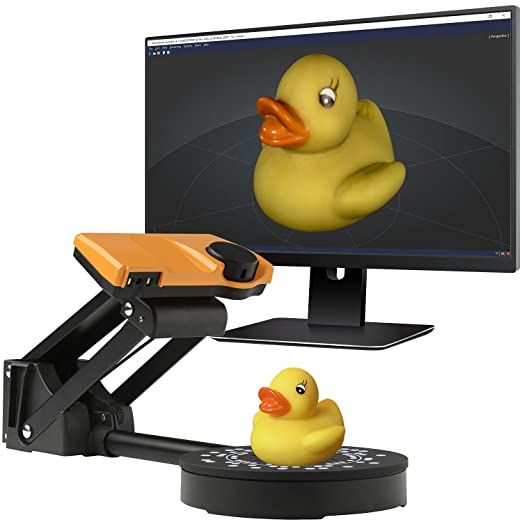

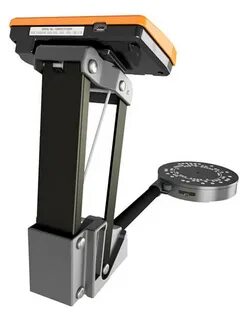

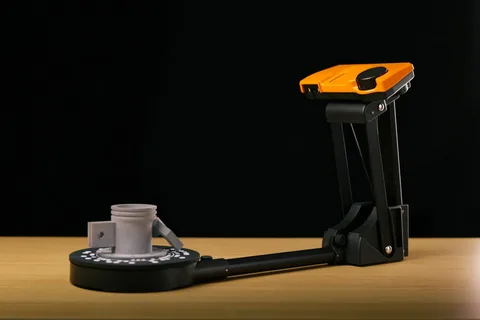

The Scan Dimension SOL is a fully automated desktop scanner that pairs a 5 MP camera with a motorised turntable to digitise small objects with little manual work. It reaches 0.1 mm accuracy and takes items from about 25 mm up to 170 mm, guiding the process with white light and laser light. It is a lower-cost desktop scanner for hobby, teaching and design work that needs repeatable captures without handheld scanning.
Highlights
- 0.1 mm accuracy
- Motorised turntable, automated
- 5 MP camera
- Objects from 25 mm to 170 mm
- Guided scanning steps
- Lower-cost desktop scanner
Specifications
- Type
- 3D scanner
- Sensor
- 5 MP camera
- Light source
- White light + laser line
- Accuracy
- 0.1 mm
- Scan range
- min. 25 x 25, max. 170 x 170 mm
- Full scan cycle
- Approx. 1-2 minutes per object
- Turntable
- Motorised, automated rotation
- Connectivity
- 1x USB 3.0
- Output formats
- STL, OBJ, PLY
- Software
- Scan Dimension desktop app (Windows/macOS)
- Best for
- Hobbyists, educators, and product designers
- Weight
- 3.393 kg
